Demystifying Server Lookup: A Comprehensive Guide
1. What is Server Lookup?
Server lookup, also known as DNS (Domain Name System) lookup, is a process of translating a human-readable domain name (e.g., www.example.com) into its corresponding numerical IP address (e.g., 192.168.1.1). This translation is crucial for establishing network connections between devices.
2. How Server Lookup Works
2.1 DNS Hierarchy
The DNS system is a hierarchical network of servers that store and distribute domain name-to-IP address mappings. The hierarchy consists of:
- Root Name Servers: The highest-level servers that contain records for all top-level domains (e.g., .com, .net).
- Top-Level Domain (TLD) Name Servers: Servers that manage specific TLDs (e.g., .com Name Servers).
- Authoritative Name Servers: Servers maintained by the domain owners that store the IP addresses for their domains.
2.2 Lookup Process
When a user enters a domain name into their browser, the following steps occur:
- Local Cache Lookup: The browser checks its local cache for the IP address associated with the domain.
- DNS Recursion: If the IP address is not in the local cache, the browser sends a DNS lookup request to its designated DNS server.
- Recursive Query: The DNS server sends a query to the root name servers, which forward the request to the TLD name servers and eventually to the authoritative name servers.
- Iterative Query: If the query cannot be resolved recursively, the DNS server sends an iterative query to each name server in the hierarchy, starting with the root name servers.
- IP Address Resolution: The DNS server returns the IP address for the domain, which is then passed back to the browser.
3. DNS Lookup Types
3.1 Forward Lookup
The most common type, where a domain name is converted into an IP address. Typically used by clients looking to access a website or email server.
3.2 Reverse Lookup
The inverse of forward lookup, where an IP address is converted into a domain name. Used by administrators to troubleshoot network issues or identify hosts.
4. DNS Records
The DNS server stores the following types of records that map domain names to IP addresses:
- A Records: Maps a domain name to an IPv4 address (e.g., www.example.com → 192.168.1.1).
- AAAA Records: Maps a domain name to an IPv6 address (e.g., www.example.com → 2001:db8::1).
- CNAME Records: Maps an alias (cname.example.com) to a different domain name (www.example.com).
- MX Records: Maps a domain name to an email server (e.g., example.com → mail.example.com).
5. Server Lookup Tools
5.1 Nslookup

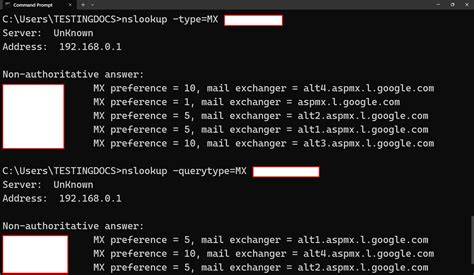

A command-line tool for performing DNS lookups, such as forward and reverse lookups, and querying specific DNS records.
5.2 Dig
A more advanced command-line tool for DNS lookups that offers additional features, such as tracing the lookup process.
6. Troubleshooting Server Lookup Issues
6.1 Incorrect DNS Settings
Ensure that the DNS settings on your network adapter are correct and pointing to the correct DNS servers.
6.2 DNS Server Issues
Check if the DNS servers you are using are up and running. You can use online DNS lookup tools to confirm.
6.3 Cache Issues
Flush the DNS cache on your device (e.g., ipconfig /flushdns in Windows) to clear any stale DNS entries.
6.4 Firewall or Antivirus Blocking
Disable or temporarily allow DNS traffic through your firewall or antivirus software.
7. Server Lookup and Performance
7.1 DNS Cache
The DNS cache stores recently resolved domain name-to-IP address mappings, reducing subsequent lookup times.
7.2 DNS Pre-Fetching
Some browsers pre-fetch the DNS records for links on a webpage, improving page load speeds.
7.3 DNS Load Balancing
DNS servers can be load balanced to distribute traffic and improve performance.
8. Server Lookup Security
8.1 DNS Spoofing
An attack where malicious actors intercept DNS lookups and redirect users to fake websites.
8.2 DNS Hijacking
A more sophisticated attack where attackers gain control of a domain's authoritative name servers, redirecting all traffic to malicious destinations.
9. Server Lookup for Network Administrators
9.1 DNS Server Management
Network administrators must monitor, maintain, and configure DNS servers to ensure network stability and security.
9.2 DNS Zone Files
DNS zone files contain the DNS records for a specific domain. Administrators can edit and publish these files to manage their domains' DNS settings.
10. Server Lookup in the Real World
Server lookup is a fundamental aspect of the Internet and essential for:
- Website Accessibility: Translating domain names into IP addresses, enabling users to access websites.
- Email Delivery: Routing email messages to the appropriate mail servers.
- Network Security: Identifying and blocking malicious hosts and websites based on their IP addresses.
Frequently Asked Questions
1. What is the purpose of a server lookup?
To translate human-readable domain names into corresponding IP addresses, enabling network connections.
2. How does a server lookup work?
It involves a hierarchical system of DNS servers that recursively or iteratively query each other to find the correct IP address.
3. What are some common DNS record types?
A records (IPv4 addresses), AAAA records (IPv6 addresses), CNAME records (aliases), and MX records (email servers).
4. What is a DNS cache?
It stores recently resolved DNS mappings to speed up subsequent lookups.
5. How can I troubleshoot server lookup issues?
Check DNS settings, ensure DNS servers are working, and clear the DNS cache.
6. What is DNS spoofing?
An attack where malicious actors intercept and redirect DNS lookups to fake websites.
7. How do I manage DNS servers as an administrator?
By monitoring, maintaining, and configuring DNS servers and editing DNS zone files.
8. What are the benefits of DNS pre-fetching?
It improves website load speeds by pre-fetching DNS records for potential future connections.
9. What is the importance of server lookup in network security?
It helps identify and block malicious hosts and websites based on their IP addresses.
10. What is a reverse server lookup?
It converts an IP address into a domain name, used for troubleshooting and host identification.
Conclusion
Server lookup, or DNS lookup, is a crucial process in the operation of the Internet. It enables us to connect to websites, send emails, and secure our networks. Understanding the inner workings of server lookup empowers users, administrators, and security experts alike to troubleshoot issues, optimize performance, and enhance network security.
