Server Rack Dimensions: A Comprehensive Guide to Sizing and Choosing the Right Unit
Introduction
#1. Server Rack Dimensions
What are Server Racks?
Server racks, also known as equipment racks, are enclosures designed to house and organize servers, networking equipment, and other data center equipment. They provide a secure and organized environment to store and manage IT infrastructure, ensuring optimal performance and efficiency.
Common Server Rack Dimensions

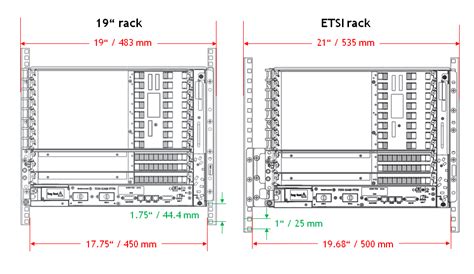

Server racks come in various sizes, denoted by their height and width in rack units (U). A rack unit, abbreviated as "U," is a standard unit of measurement equal to 1.75 inches (44.45 mm).
| Rack Height (U) | Height (Inches) | Height (mm) |
|---|---|---|
| 1U | 1.75 | 44.45 |
| 2U | 3.50 | 88.90 |
| 4U | 7.00 | 177.80 |
| 6U | 10.50 | 266.70 |
| 8U | 14.00 | 355.60 |
| 10U | 17.50 | 444.50 |
| 12U | 21.00 | 533.40 |
| 14U | 24.50 | 622.30 |
| 16U | 28.00 | 711.20 |
| 18U | 31.50 | 800.10 |
| 20U | 35.00 | 889.00 |
| 22U | 38.50 | 977.90 |
| 24U | 42.00 | 1066.80 |
| 26U | 45.50 | 1155.70 |
| 28U | 49.00 | 1244.60 |
| 30U | 52.50 | 1333.50 |
| 32U | 56.00 | 1422.40 |
| 34U | 59.50 | 1511.30 |
| 36U | 63.00 | 1600.20 |
| 38U | 66.50 | 1689.10 |
| 40U | 70.00 | 1778.00 |
| 42U | 73.50 | 1866.90 |
| 44U | 77.00 | 1955.80 |
| 46U | 80.50 | 2044.70 |
| 48U | 84.00 | 2133.60 |
| 50U | 87.50 | 2222.50 |
#2. Choosing the Right Server Rack Size
Factors to Consider:
- Equipment Requirements: Determine the number and size of servers, networking devices, and other equipment that will be housed in the rack.
- Usable Space: Consider the available floor space and ceiling height to accommodate the rack.
- Cable Management: Allow for ample space for cable routing and organization to maintain airflow and prevent overheating.
- Future Expansion: Plan for future growth and expansion by selecting a rack with sufficient capacity.
- Rack Compatibility: Ensure the rack is compatible with your existing equipment and meets the manufacturer's specifications.
#3. Rack Types and Features
Types of Server Racks:
- Open Frame Racks: Open-air designs with perforated sides for optimal airflow and visibility.
- Enclosed Racks: Closed cabinets with doors and panels for security and noise reduction.
- Wall-Mount Racks: Wall-mounted racks for space-saving installations in small environments.
Common Features:
- Adjustable Rails: Sliding rails that adjust to accommodate different equipment depths.
- Removable Panels: Removable side panels and doors for easy access and maintenance.
- Cable Management Arms: Integrated arms for organizing and routing cables.
- Ventilation Fans: Fans to ensure proper airflow and cooling.
- Locking Mechanisms: Locks to secure equipment and prevent unauthorized access.
#4. Rack Accessories and Options
Essential Accessories:
- Power Distribution Units (PDUs): Electrical outlets to distribute power to equipment.
- Cable Management Trays: Trays to organize and secure cables.
- Shelving: Shelves for storing non-rack-mounted equipment and supplies.
- Rack Monitor: Display for monitoring environmental conditions and other rack metrics.
Optional Accessories:
- Dust Filters: Filters to prevent dust and particles from accumulating on equipment.
- Soundproofing Panels: Panels to reduce noise levels in enclosed racks.
- Rollers: Wheels for easy mobility.
- Seismic Bracing: Bracing to stabilize racks in earthquake-prone areas.
#5. Rack Maintenance Best Practices
Regular Cleaning:
- Clean racks regularly to remove dust and debris.
- Use a soft brush or vacuum cleaner for cleaning.
- Avoid using harsh detergents or solvents.
Proper Ventilation:
- Ensure proper airflow by leaving sufficient space between equipment.
- Avoid blocking airflow by overcrowding racks.
- Install ventilation fans if necessary.
Secure Cable Management:
- Bundle cables neatly and route them securely.
- Use cable ties or Velcro straps to manage cables.
- Avoid leaving loose cables hanging.
#6. Conclusion
Choosing the right server rack dimensions is crucial for optimizing data center efficiency, performance, and security. By understanding the different rack types, dimensions, and features, you can select a rack that meets your specific requirements and ensures the optimal operation of your IT equipment. Proper rack maintenance is also essential to maintain the integrity and longevity of your servers and network devices.
